Update testing

Sometimes it might be necessary to test the update flow of the desktop application. This document will attempt to describe how to do so in detail.

The desktop applications are published to our GitHub page, which we can’t really do for development purposes. To provide a fairly similar environment, we run a local S3 simulator which lets us simulate a S3 provider environment.

While this is not identical to our scenarios it will still allow us to test the UI and updating process without messing around in a GitHub repo.

Preparation​

  1. Start the minio docker container using docker compose up in scripts/dev.

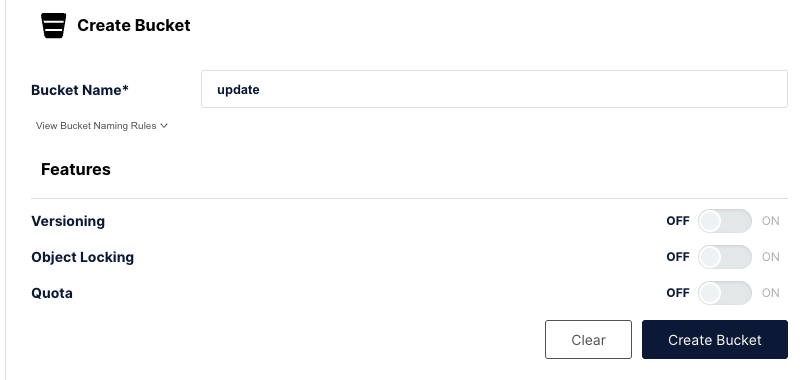

  2. Add a read-only bucket called update, by going to http://localhost:9001 and login using minioadmin/minioadmin, click Create bucket fill in the details.

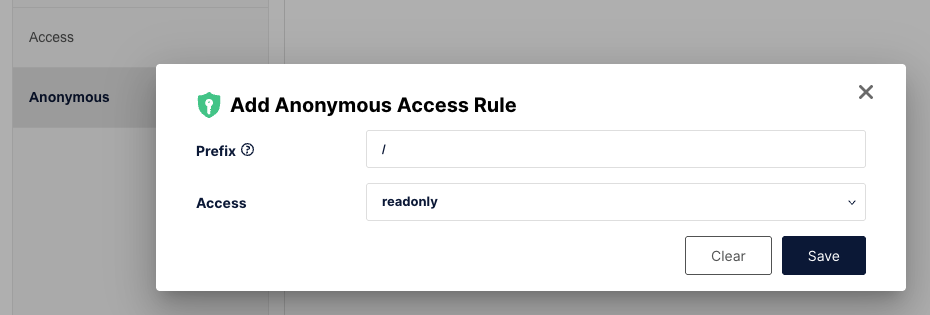

  3. Click on the bucket then Anonymous, Add Access Rule and fill in the following details.

  4. Modify the electron-builder.json with the following publish settings.

    "publish" : {
        "provider": "s3",
        "endpoint": "http://127.0.0.1:9000",
        "bucket": "update"
    },

  5. Create .aws/credentials inside the Users home directory (Windows: C:\Users\username, Linux: ~/) with the following content

    [default]
    aws_access_key_id=minioadmin
    aws_secret_access_key=minioadmin

Update​

  1. Generate a local build using npm run publish:win:dev
  2. Install the build within dist/nsis-web/Bitwarden-Installer-1.32.0.exe
  3. Update the version number in src/package.json
  4. Publish the new version using: npm run publish:win:dev
  5. The app should now prompt for an update.

Note: This can also be done on Mac and Linux, just use npm run publish:mac and npm run publish:lin for steps 1 and 4.

Staged rollouts​

The process for testing staged rollouts is a bit cumbersome, as it requires updating the update manifests and uploading them manually. The detailed steps on how to do a staged update are as follows:

  • Create and publish an update as mentioned in the previous section.

  • Open the MinIO object browser and navigate to the bucket.

  • Download the update manifest. This will be the file named latest.yml/latest-mac.yml/latest-linux.yml, depending on your platform.

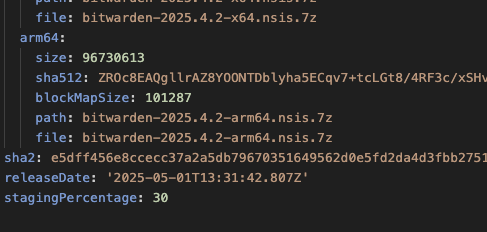

  • Open the file in your preferred editor, and add a line at the end in the format stagingPercentage: X, as shown in the image below.

    • X is the percentage of users that will get the update. It must be an integer greater than zero and equal or less than 100.

  • Upload the file to the bucket again by drag-and-dropping it into the file list.

When checking updates using staged rollouts, electron-updater will use a random persistent per-installation GUID and derive a rollout percentage from it. It will then refuse to apply any
updates where the staging percentage in the downloaded update manifest is less than the per-installation percentage. This randomness complicates testing, but it's possible to replace the random GUID by a fixed one to guarantee reproducible tests:

  • Navigate to the application's data folder. In Windows this is C:\Users\<user>\AppData\Roaming\Bitwarden
  • Open the file called .updaterId in your favorite editor and replace the GUID inside by c8beb766-67f5-4058-b6a1-7031fef1c31a.
  • This GUID has a rollout percentage of 99.5, which means that:
    • Using stagingPercentage: 100 will guarantee the client is part of the staged rollout.
    • Using any other value almost guarantee the client will NOT be part of the rollout.

Troubleshooting​

Issues when running the publishing command​

If the publish command returns an error when uploading the artifacts, ensure the credentials were
created successfully as mentioned in step 5 of the preparation section. If the problem persists, some other application on your system might have reserved port 9000 . You can use the following command on UNIX systems to check if this port is in use as well:

sudo lsof -nP -iTCP -sTCP:LISTEN | grep 9000

If that's the case you should update the port to a different value, for example 9002:

  • Update the endpoint URL in electron-builder.json to http://127.0.0.1:9002
  • Update the ports section in the scripts/dev/docker-compose.yml file and replace the first line by - "9002:9000", then restart the docker container

Related: https://www.electron.build/tutorials/test-update-on-s3-locally
